Engineered Commercial Retaining Walls in Atlanta, GA

We construct commercial masonry retaining walls in Atlanta, GA for parking lots, drive lanes, and site grading. Working with engineered plans, we install CMU, brick, and stone faced walls with proper drainage and reinforcement. Support your site design with strong, long lasting commercial retaining walls.

Legendary Masonry Atlanta provides professional commercial masonry retaining walls throughout Atlanta, GA, Georgia and the surrounding area. Our licensed, insured crew delivers safe, clean, on-time work with a free estimate before anything begins. Call 470-665-3867 or request your free quote.

Engineered commercial retaining walls for Atlanta properties

Legendary Masonry Atlanta designs and builds commercial masonry retaining walls that stand up to North Georgia clay soils, heavy rain, and the traffic loads that come with busy properties. We focus on walls that actually solve grading and drainage problems long term, not just look good for the first year.

On most commercial projects, our retaining walls are used to create parking lots on sloped sites, hold back soil around building pads, or tame steep grades along property lines. We work on shopping centers, office parks, warehouses, multi‑family developments, schools, and municipal sites across the Atlanta metro area. Before a single block is laid, we look at how the wall will interact with pavement, storm drains, sidewalks, and utilities so you do not end up with settlement or cracking later.

Because commercial retaining walls must carry higher loads and meet stricter codes than residential work, we coordinate closely with civil engineers and geotechnical reports. If you already have stamped wall plans, we build to spec. If you do not, we can connect you with local engineers who understand City of Atlanta and surrounding county requirements, including DeKalb, Fulton, Cobb, and Gwinnett. Every wall is laid out with long term use in mind, from pallet jack traffic behind a loading dock to vibration from nearby roadways.

Materials and structural options for commercial masonry retaining walls

Most of our commercial masonry retaining walls in Atlanta use one of three main systems: segmental retaining wall (SRW) block, cast‑in‑place concrete with masonry facing, or large format modular blocks. The right choice depends on wall height, loading, appearance requirements, and budget.

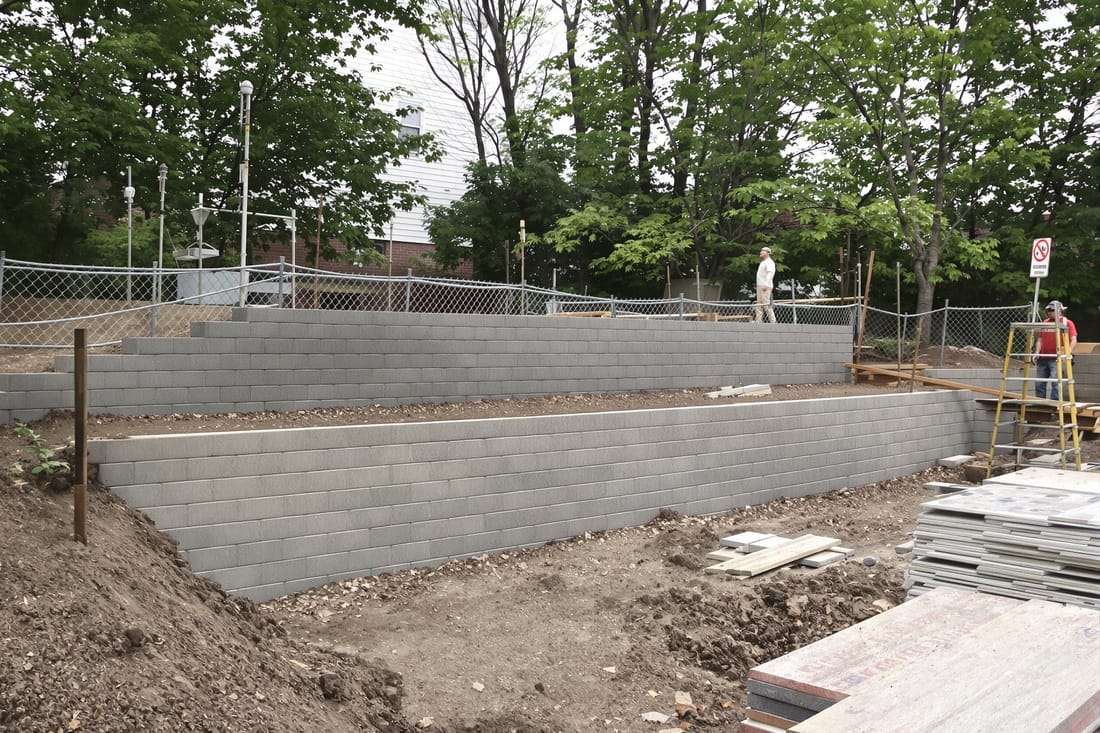

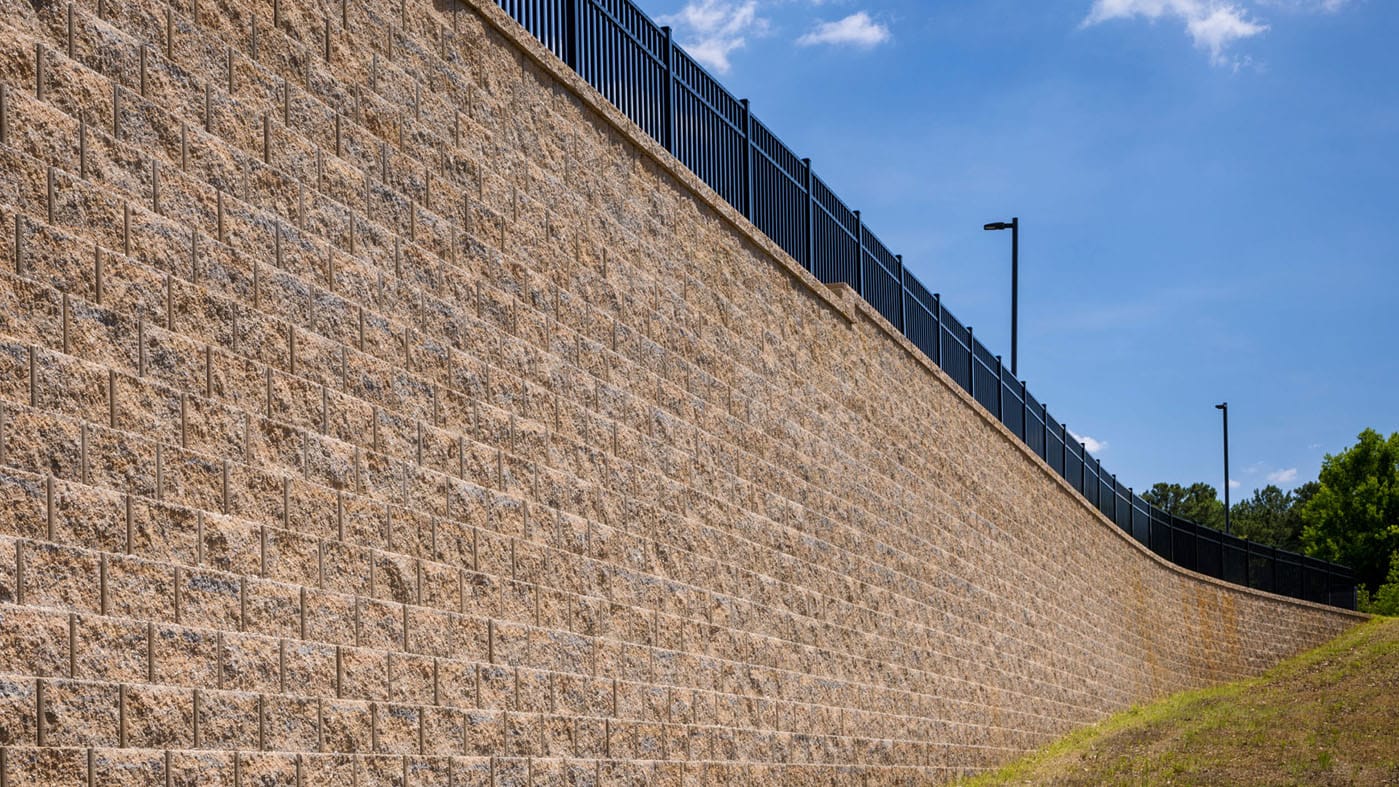

Segmental concrete block walls are common for parking lots and property lines. These use interlocking concrete units with geogrid reinforcement that extends back into the soil. They are versatile, work well in our clay soils when properly drained, and offer many face textures and colors that match commercial architecture. For taller walls or walls near structures, we often combine these blocks with multi‑layer geogrid and engineered backfill.

Cast‑in‑place concrete walls with a masonry veneer are often used near buildings or where space behind the wall is tight. The structural wall is poured concrete with steel rebar, then we apply brick or stone on the exposed face for aesthetics. Legendary Masonry Atlanta often uses this approach when a developer wants the wall to match the brick on the main building or needs a slim profile near loading docks or stairwells.

Large modular block systems and gravity walls work well on steep sites or for industrial yards, especially when heavy trucks or equipment operate above. These blocks are heavier, can be stacked quickly, and reduce the amount of geogrid needed. We pay close attention to local site conditions around Atlanta, such as expansive clay, perched groundwater, and tree roots, to choose the system that will perform best on your specific site instead of forcing a one‑size‑fits‑all solution.

How we design and build walls that survive Atlanta’s rain and clay

Most retaining wall failures in the Atlanta area come from water and poor compaction, not from the block itself. Legendary Masonry Atlanta puts most of our effort into the parts you do not see: drainage, soil prep, and reinforcement.

A typical commercial masonry retaining wall build starts with excavation and subgrade preparation. We over‑excavate beyond the back of the wall to make room for drainage stone and geogrid. Any soft or organic soil is removed down to competent material. Where geotechnical reports call for it, we place and compact structural fill in thin lifts with plate compactors or rollers, recording densities to meet project specs.

Drainage is critical in our climate, where we can get heavy storms in a single afternoon. Behind the wall we install a layer of clean angular stone and perforated drain pipe sloped to daylight or connected to the site storm system. Filter fabric is used to separate this drainage zone from native clay so fines do not clog the system. On tiered or stepped walls, we plan drainage paths between levels so water is not trapped.

For SRW walls, geogrid layers are installed at specified elevations and lengths, oriented perpendicular to the wall and pulled tight into the compacted backfill. For poured concrete walls, we install rebar cages, proper control joints, weep holes where required, and waterproofing membranes on the soil side when necessary. Throughout the build, we maintain wall batter, alignment, and elevation with string lines and laser levels, which is especially important on long runs along parking lots or property boundaries.

We also plan for Atlanta’s freeze‑thaw cycles and summer heat. Top courses are capped and sealed to reduce water infiltration. Where pedestrians or vehicles are near the wall, we coordinate guardrails or fences with the wall structure so posts do not compromise the integrity of the wall.

Cost factors and value engineering for commercial retaining walls

Commercial masonry retaining walls vary widely in cost, and the biggest drivers are height, loading, access, and soil conditions. Legendary Masonry Atlanta is upfront about these cost factors so owners, GCs, and developers can budget accurately and avoid change orders later.

Wall height and surcharge loads (like parking lots, drive aisles, or buildings near the top of the wall) usually determine whether you need geogrid, heavier blocks, or reinforced concrete. A 4‑foot landscape wall behind a retail pad is very different from a 14‑foot wall holding up a parking deck approach. Taller and heavily loaded walls need more engineering, more material, and more careful staging, which drives cost.

Site conditions matter just as much. Tight in‑town Atlanta sites with limited access require smaller equipment and more handwork, which increases labor. Steep slopes, existing structures, utilities, and tree protection zones also affect how we can excavate and stage materials. Poor or wet soils may require undercutting and replacement with suitable fill, or in some cases, alternate wall systems.

Legendary Masonry Atlanta often helps project teams value engineer retaining walls without sacrificing safety. Examples include stepping the wall to reduce maximum height, switching from a full concrete wall with brick to an engineered block system where appearance allows, or adjusting alignment to avoid deep cuts into bad soil. We also look for ways to coordinate with other trades, such as having the site contractor rough‑grade and handle mass excavation while we focus on base prep and wall installation.

By addressing these details early, our clients frequently avoid costly redesigns during construction. We are accustomed to working from civil sets, responding to RFIs, and providing shop drawings or layout assistance when needed so the wall ties cleanly into curbs, sidewalks, and other site features.

Permits, inspections, and what Atlanta owners should check before hiring

Commercial retaining walls in the Atlanta area can trigger permitting and inspection requirements, especially once they exceed certain heights or support structures, traffic, or public areas. Legendary Masonry Atlanta helps owners and contractors navigate local codes so the project does not get hung up late in the game.

In many jurisdictions around Atlanta, any wall over 4 feet in exposed height or bearing a surcharge must be engineered and may require a permit and inspections. We recommend confirming requirements with the City of Atlanta or the specific county early in design. We regularly work with stamped engineered drawings, special inspection reports, and field changes coordinated through the design team.

Before you hire any contractor for commercial masonry retaining walls, ask for recent local projects of similar height and complexity. Visit a wall that is at least a few years old and check for bulging, cracking, or leaning. Ask how they handle drainage, compaction testing, and geogrid installation. A low bid that skimps on unseen items like drainage stone or grid length can leave you with a failure that is far more expensive than doing it right the first time.

Legendary Masonry Atlanta maintains communication with site supers and project managers, provides clear schedules that work with other trades, and keeps detailed as‑built information for walls, especially where future additions or tie‑ins are likely. Whether you are stabilizing a slope behind a new multifamily building, building up a pad for a warehouse in south Atlanta, or reworking old failing walls at an existing retail center, we focus on walls that meet code, look clean, and keep your site usable for decades.
